Stainless Steel Diaphragm Air Pumps Air flow For Sodium Hydroxide

Product Features

A 15 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ············································ 40°- 150°F (4.4- 65.5°C)

Santoprene······································ -40°- 225°F (-40°- 107.2°C) ···············································40°- 220°F (4.4°- 104°C) Nitrile················································10°- 180°F (-12°- 82°C) Viton··················································20°-150°F (-12°- 93°C) Kynar·················································10°-200°F (-28.9°- 65.5°C) Polypropylene······································32°- 175°F (0-79.4°C)

Maintenance

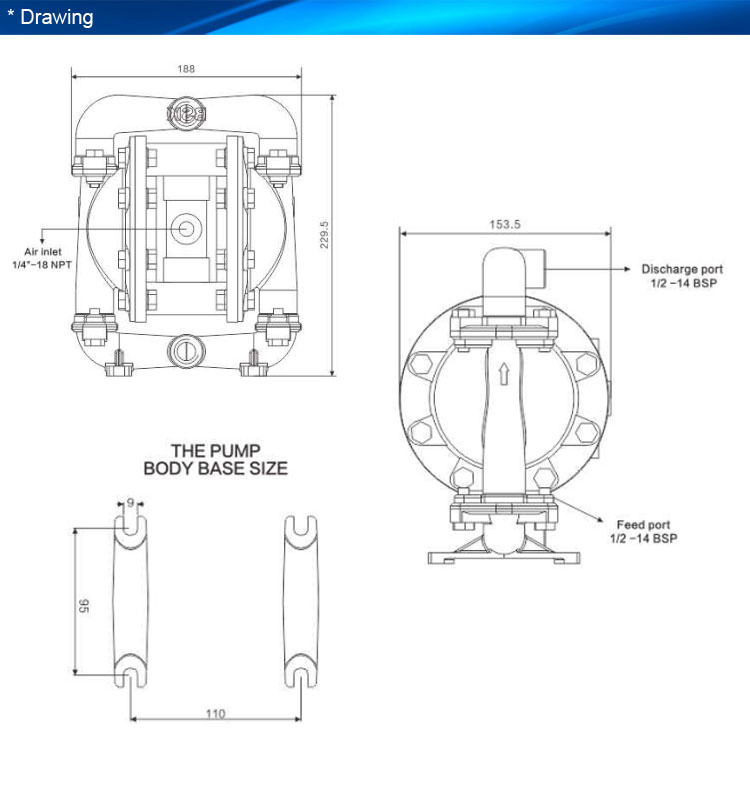

• Please refer to the component schematic in the assembly drawings to look up the serial numbers and names of parts and grasp the information of parts and maintenance service pack.
• Some BSK parts are marked as "wearing parts", which can conduce to quick service and downtime reduction.
• Service kits are divided to service two separate diaphragm pump functions: 1. AIR SECTION, 2. FLUID SECTION. The FLUID SEC -TION is divided further to match typical part MATERIAL OPTIONS.
• Provide a clean work surface to protect sensitive internal moving parts from contamination from dirt and foreign matter during service disassembly and reassembly.
• Keep good records of service activity and include pump in preven -tive maintenance program.
• Before disassembling, empty captured material in the outlet man -ifold by turning the pump upside down to drain material from the pump.
