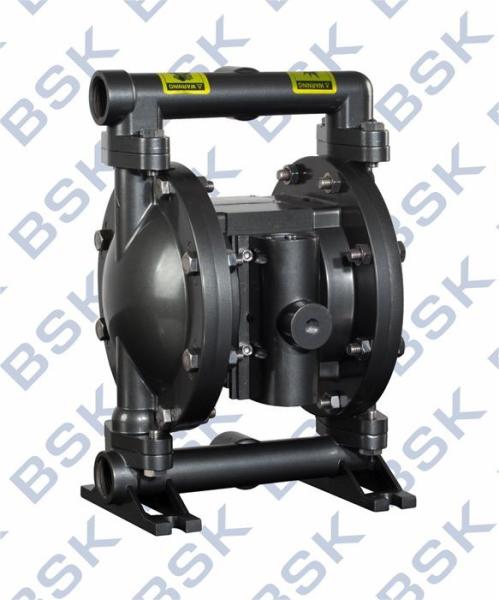

Chemical Air Operated Diaphragm Pump / Diaphragm Vacuum Pump
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a
rubber,thermoplastic or diaphragm and suitable valves either side
of the diaphragm (check valve,butterfly valves,flap valves,or any
other form of shut-off valves) to pump a fluid.
Product Description:
Air Inlet | 1/4-18NPTF-1 |
Fluid Outlet | 1-11-1/2NPTF-1,Rp1-11BSP |
Fluid Inlet | 1-11-1/2NPTF-1,Rp1-11BSP |
Max. Flow | 135L/Min |
Max. Head | 70M |
Max. Self-priming Lift (dry) | 4m |
Max. Air Pressure | 8.3bar |
Max. Particle Diameter | 3mm |
Max. Installation Dimension | 249.5×360.5×245mm |
Weight | 9.5kg |
Noise | <80db |
Pneumatic Diaphragm Pump Advantages:
1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various
erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with
longer service life.
5. Modularization of main valve and air motor. No broken, easy to
disassemble and repair.
4. Material:Cast steel,Alu,SS,PP
diaphragm pump offers high volume delivery even at low air pressure
and a b road range of material compatibility options
available.Refer to the model and option chart.The pump is provided
with the modularized air motor and fluid section.
The air operated diaphragm pump alternately generates the intake
fluid pressure and positive fluid pressure in the fluid chamber by
using the pressure difference in the air chamber. The ball valve
can ensure the forward flow of fluid.
Pump cycling will begin as air pressure is applied and it will
continue to pump and keep up with the demand. It will build and
maintain line pres -sure and will stop cycling once maximum line
pressure is reached (dis -pensing device closed) and will resume
pumping as needed.
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon
Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ············································· 40°- 150°F
(4.4- 65.5°C)
Santoprene······································· -40°- 225°F
(-40°- 107.2°C)
················································40°- 220°F (4.4°-
104°C) Nitrile·················································10°-
180°F (-12°- 82°C)
Viton··················································-40°- 350°F
(-40°-176.6°C)
Hytrel················································· 20°-150°F
(-12°- 93°C)
Kynar·················································10°-200°F
(-28.9°- 65.5°C)
Polypropylene·······································32°- 175°F
(0-79.4°C)
1” Flow diagram
