Food / Chemical Positive Displacement Pump Corrosion Resistant
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a
rubber,thermoplastic or diaphragm and suitable valves either side
of the diaphragm (check valve,butterfly valves,flap valves,or any
other form of shut-off valves) to pump a fluid.
The diaphragm pump offers high volume delivery even at low air
pressure and a b road range of material compatibility options
available.Refer to the model and option chart.The pump is provided
with the modularized air motor and fluid section.
The air operated diaphragm pump alternately generates the intake
fluid pressure and positive fluid pressure in the fluid chamber by
using the pressure difference in the air chamber. The ball valve
can ensure the forward flow of fluid.
Pump cycling will begin as air pressure is applied and it will
continue to pump and keep up with the demand. It will build and
maintain line pres -sure and will stop cycling once maximum line
pressure is reached (dis -pensing device closed) and will resume
pumping as needed.
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
Advantage
Idling ,Self-priming , Submerse capability.
Provide stall-free, ice-free zero leak operation.
Epoxy-coated air section for tough environmental conditions.
Low shear force , not easy to damage the material structure.
Bolt joint design provides even sealing pressure for optimal
performance
Modular air valve,low pulsation operation,providing smooth and
rapid changeover.
No electricity . It's safe and realiable while using in the
flammable and explor place .
Diversity of material,no rotating parts,applicable to various
erosive situations.
Can pump corrosive , volatile, flammable, poisonous fluids with
particles and high viscosity.
Delivery lift and flow can pass the pneumatic valve open to realize
the stepless adjustment
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon
Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F
(4.4- 65.5°C)
Santoprene········································-40°- 225°F
(-40°- 107.2°C) ··············································40°-
220°F (4.4°- 104°C)
Nitrile················································10°- 180°F
(-12°- 82°C)
Viton·················································-40°- 350°F
(-40°-176.6°C)
Hytrel·················································-20°-150°F
(-12°- 93°C)
Kynar··················································10°-200°F
(-28.9°- 65.5°C)
Polypropylene········································32°- 175°F
(0-79.4°C)

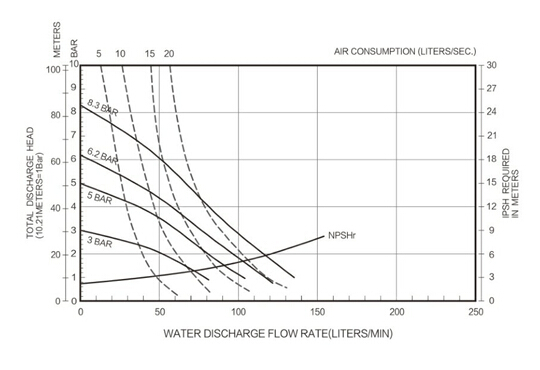

1” Flow diagram
