2 Inch Air Diaphragm Pump Acid Transfer Diaphragm Pump 667l/Min Non
Leakage
Air Diaphragm Pump
plastic materail with PTFE diaphragm,centre body Plastic, aluminum alloy optional!
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that is on of
positive
displacement
pump uses a combination of the reciprocating action of a
rubber,thermoplastic or diaphragm and suitable valves either side
of the diaphragm (check valve,butterfly valves,flap valves,or any
other form of shut-off valves) to pump a fluid.
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | 1/Min | 667 for 2" |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 7 |
| 6 | Weight | kg | 28 |
| 7 | Noise level | db | ＜70 |
Specifications
Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
BG50PP- X X - XX- X X (model selection)
Flow rate.
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon
Steel P/K –Polypropylene/Kynoar

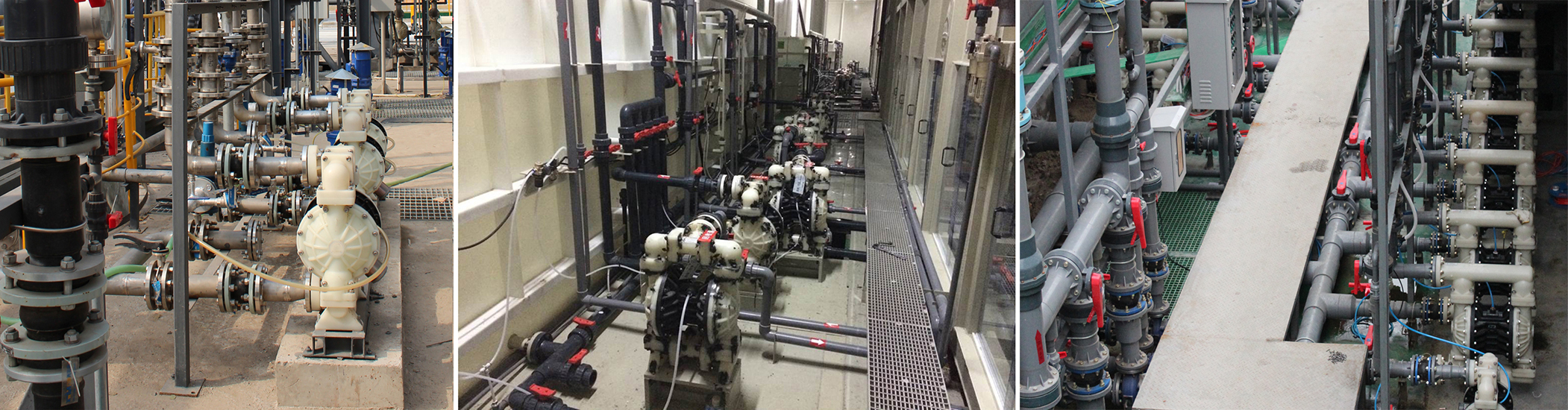

The Main Application of Plastic Diaphragm Pump
- Pump peanut butter, pickles, mashed potatoes, sausage, jam, apple
pulp, chocolate and so on.
- Pump paint, gum, pigments.
- Adhesives and glue, all kinds of pumps can be suck.
- All kinds of tiles, porcelain, brick and pottery glaze.
- After the oil well has been drilled, pump deposits and fill up.
- Pump a variety of emulsion and packing.
- Pump a variety of age.
- Use pumps as oil tankers, barges clean up and draw in the
warehouse's age.
- Hop and fermented flour slurry, syrup, sugar dense.
- Pump the water in the mine, tunnel, tunnel, mineral processing and
slag. Pump the cement grouting and mortar.
- All kinds of rubber pulps.
- all kinds of abrasive, corrosive oil and mud, grease and general
cleaning container.
- All kinds of highly toxic, flammable and volatile liquids.
- All kinds of strong acid, strong alkali, strong corrosion liquid.
- All kinds of high temperature resistant liquid with the highest
temperature of 150 DEG C.
- As a variety of solid liquid separation equipment of the front
stage pressure transmitter.
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ·············································· ·40°- 150°F
(4.4- 65.5°C)
Santoprene········································· -40°- 225°F
(-40°- 107.2°C) ···············································
40°- 220°F (4.4°- 104°C)
Nitrile···················································10°-
180°F (-12°- 82°C)
Viton·····················································-40°-
350°F (-40°-176.6°C)
Hytrel···················································-20°-150°F
(-12°- 93°C)
Kynar·················································· ·10°-200°F
(-28.9°- 65.5°C)
Polypropylene··········································32°- 175°F
(0-79.4°C)
