Stainless Steel Air Driven Double Diaphragm Pump Chemical Resistance

Stainless Steel Air Driven Double Diaphragm Pump Strong Acid Corrosion

Air Driven Double Diaphragm Pump Introduction

Air Driven Double Diaphragm Pump is one kind of positive displacement pump what a new type transferring machinery The power supply is compressed air, It belongs to a diaphragm pump and moves back and forth

, such as liquid with granule, high-corrosive liquid, high viscosity, volatile, flammable, poisonous liquid.

Air Driven Double Diaphragm Pump Parameters

A40 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ··············································40°- 150°F (4.4- 65.5°C)

Santoprene·······································-40°- 225°F (-40°- 107.2°C) ···············································40°- 220°F (4.4°- 104°C) Nitrile···············································10°- 180°F (-12°- 82°C) Viton················································-40°- 350°F (-40°-176.6°C) Hytrel················································-20°-150°F (-12°- 93°C) Kynar················································10°-200°F (-28.9°- 65.5°C) Polypropylene·····································32°- 175°F (0-79.4°C)

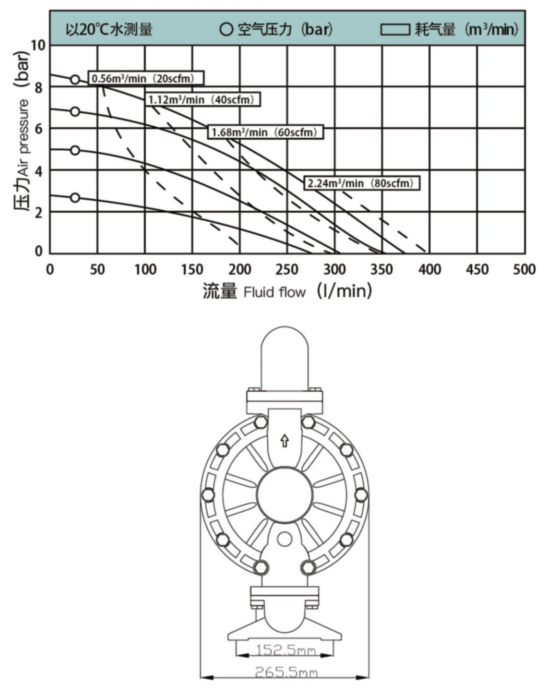

1.5” Air Driven Double Diaphragm Pump diagram

Air Driven Double Diaphragm Pump Details Video

BOGEN As a company absorbed in fluid transportation who invented the world's first dualceramic air valve system! Its highly valued by customers for its unique patentedtechnology and nanny service, high quality, wide applicable area, and excellentstability.In 2011 set up its factory in Guangzhou, China, after introducing the matureand advanced technology and service concept into China. It now comprises morethan 100 professional agents with service teams in more than 30 cities in China.  service satisfies customers' diversified and individual needs to thehilt, reduces their maintenance cost, and improves their efficiency.manages the marketing of its technical products to customers. Sharing theadvanced technology value, the validated technology outcomes, and servicesstrengthen our partnership with our customers, your trustworthy service provider of cutting-edge fluid technology!

With the end user and customer feedback, thus establishing a highly-effective techological design and development system for products and services.
