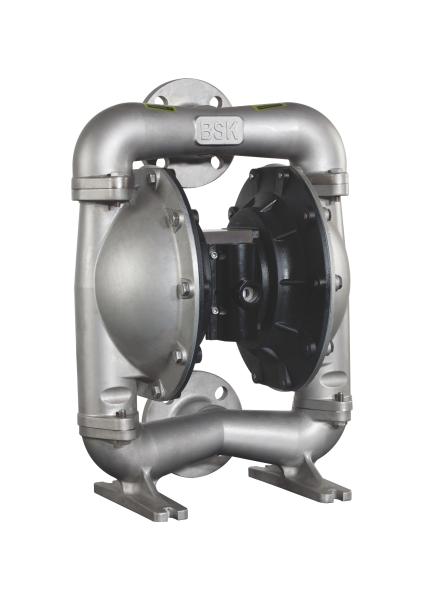

Portable AODD Air Operated Diaphragm Pump For Waste Water Treatment

About AODD PUMP

If you're looking for a single pump that can be used in a wide variety of applications, you want an air-operated double diaphragm (AODD) pump. JBSL provides the most complete line of AODD pumps available from one source. No other manufacturer offers more AODD pumps – or more size and flow options – that meet every sanitary standard, including FDA, USDA, 3A and EHEDG.

Pheumatic Membrane Pump Features:
1. Air driven.
2.The pump can not over heating, and no harmful gas discharged.
3. No electric spark.
4. Bigger solids also can be passed and no block.
5. Do not damage solids.
6. Has suction ability.
7. Can empty running without risk.
8. Can works under water.
9. Widely usage, even for the viscous materials.
10. No complicated control system and easy to operate.
11. Compact design and lighter, easy to be moved.
12. Easy to maintain.

13. Good self priming performance
14. Convey all kinds of medium
15. Material:Cast steel,Alu,SS,PP

AODD Pumps can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.

1.The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipmen

A 2 5 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ·······································40°- 150°F (4.4- 65.5°C)

Santoprene·································-40°- 225°F (-40°- 107.2°C)

·········································40°- 220°F (4.4°- 104°C)

Nitrile··········································10°- 180°F (-12°- 82°C)

Viton···········································-40°- 350°F (-40°-176.6°C)

Hytrel············································-20°-150°F (-12°- 93°C) Kynar···········································10°-200°F (-28.9°- 65.5°C) Polypropylene································32°- 175°F (0-79.4°C)

BOGEN As a company absorbed in fluid transportation who invented the world's first dualceramic air valve system! Its highly valued by customers for its unique patentedtechnology and nanny service, high quality, wide applicable area, and excellentstability.In 2011 set up its factory in Guangzhou, China, after introducing the matureand advanced technology and service concept into China. It now comprises morethan 100 professional agents with service teams in more than 30 cities in China.  service satisfies customers' diversified and individual needs to thehilt, reduces their maintenance cost, and improves their efficiency.manages the marketing of its technical products to customers. Sharing theadvanced technology value, the validated technology outcomes, and servicesstrengthen our partnership with our customers, your trustworthy service provider of cutting-edge fluid technology!

With the end user and customer feedback, thus establishing a highly-effective techological design and development system for products and services.
