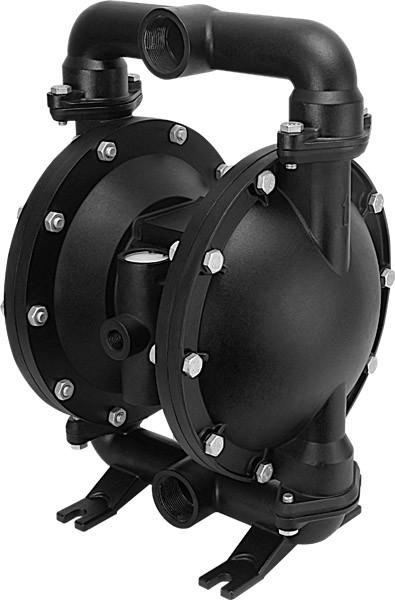

Wide Flow Pneumatic Diaphragm Pump For Prepared Foods Simple Structure

Pneumatic Diaphragm Pump Description

1. Double Diaphragm Pump Air Operated Double Diaphragm Pump Rubber Diaphragm for Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.

2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.

Pneumatic Diaphragm Pump Application

• Sauces, Purees & Beverages
• Poultry, Fish & Meat process
• Dairy
• Prepared Foods
• Fruits, Vegetables & Condiments
• Bio-pharmaceutical
• Pharmaceutical products
• Health & personal care
• Confectionary
• Chromatography, Separation, Purification
• High Purity product transfer
• Filter press feed pumps
• Process Support
• Acids, Solvents, Caustics & Alcohol

A 80 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ···············································40°- 150°F (4.4- 65.5°C)

Santoprene·········································-40°- 225°F (-40°- 107.2°C) ················································40°- 220°F (4.4°- 104°C) Nitrile················································10°- 180°F (-12°- 82°C) Viton·················································-40°- 350°F (-40°-176.6°C) Hytrel·················································-20°-150°F (-12°- 93°C) Kynar·················································10°-200°F (-28.9°- 65.5°C) Polypropylene·······································32°- 175°F (0-79.4°C)

Applicable to various corrosive liquids with granular liquids, high viscosity, volatile, flammable and highly toxic liquids

1, Pumping peanut butter, pickles, mashed potatoes, small sausage, jam apple syrup, chocolate and so on.

2, Pumping paint, gum and pigment.

3, Adhesives and glue, all kinds of available pump draw.

4, All kinds of tile, porcelain, tiles and pottery glaze.

5, After the oil well drilled by pumping sediment and filling.

6, Pumping various creams and fillers.

7, Various age pumping.

8, Pumps for the tanker, barge warehouse clearance absorb water.

9, Hops and yeast slurry, syrup, molasses.

10, Pump shaft, tunnel, tunnels, ore dressing, slag in the water. Pumping cement grout and mortar.

Various rubber slurry.

11, All kinds of abrasive, corrosive, oil and mud, grease and general cleaning containers.

12, A variety of toxic, flammable, volatile liquid.
13, All kinds of acid, alkali, strong corrosive liquids.

BOGEN As a company absorbed in fluid transportation who invented the world's first dualceramic air valve system! Its highly valued by customers for its unique patentedtechnology and nanny service, high quality, wide applicable area, and excellentstability.In 2011 set up its factory in Guangzhou, China, after introducing the matureand advanced technology and service concept into China. It now comprises morethan 100 professional agents with service teams in more than 30 cities in China.  service satisfies customers' diversified and individual needs to thehilt, reduces their maintenance cost, and improves their efficiency.manages the marketing of its technical products to customers. Sharing theadvanced technology value, the validated technology outcomes, and servicesstrengthen our partnership with our customers, your trustworthy service provider of cutting-edge fluid technology!

With the end user and customer feedback, thus establishing a highly-effective techological design and development system for products and services.
