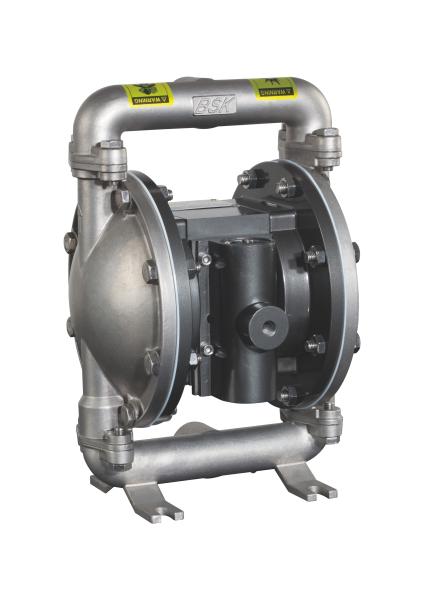

Non Leakage Industrial Diaphragm Pump / Cast Steel Air Diaphragm
Pumps
Industrial Diaphragm Pump Specifications
Industrial Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
Industrial Diaphragm Pump (also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a
rubber,thermoplastic or diaphragm and suitable valves either side
of the diaphragm (check valve,butterfly valves,flap valves,or any
other form of shut-off valves) to pump a fluid.
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 667 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 7 |
| 6 | Weight | kg | 28 |
| 7 | Noise level | db | ＜70 |
Industrial Diaphragm Pump Advantages:
1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various
erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with
longer service life.
5. Modularization of main valve and air motor. No broken, easy to
disassemble and repair.
A 50 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon
Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F
(4.4- 65.5°C)
Santoprene·········································-40°- 225°F
(-40°- 107.2°C)
·················································40°- 220°F (4.4°-
104°C)
Nitrile··················································10°- 180°F
(-12°- 82°C)
Viton···················································-40°- 350°F
(-40°-176.6°C)
Hytrel··················································-20°-150°F
(-12°- 93°C)
Kynar··················································10°-200°F
(-28.9°- 65.5°C)
Polypropylene·······································32°- 175°F
(0-79.4°C)
Industrial Diaphragm Pump diagram
