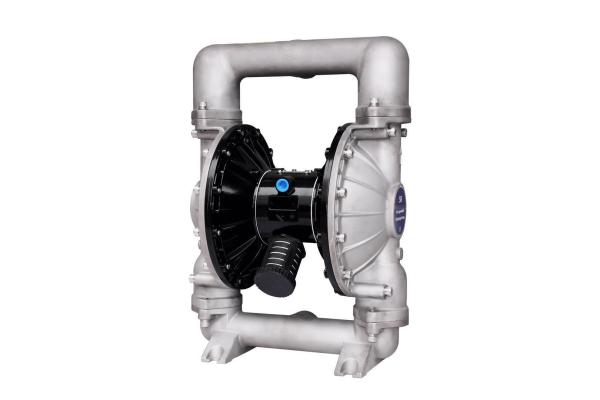

Wastewater Treatment AODD Pump High Volume Delivery Low Air Pressure

AODD Pump Features

1. No electrical motor - non sparking.
2. No mechanical seals or gland packing.
3. The pumps can run dry indefinitely without damage.
4. Safe for use in hazardous/explosive environments.
5. Variable flow - simply regulate the inlet air supply to adjust the pump flow from zero to max.
6. If discharge is clogged or closed pump stops immediately; no power consumed, no wear.
By opening discharge, flow starts automatically.
7. Self-priming from a dry start up to 6 meters without a foot valve.
8. Pressure up to 100 PSI (7 bar).
9. Operates submerged or with flooded suction.
10. No close fitting, sliding or rotating parts so can handle a wide range of fluids with high solid content.

AODD Pump Parameters

AODD Pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP

A 2 5 X X - X X X - X (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

AODD Pump Application

BOGEN As a company absorbed in fluid transportation who invented the world's first dualceramic air valve system! Its highly valued by customers for its unique patentedtechnology and nanny service, high quality, wide applicable area, and excellentstability.In 2011 set up its factory in Guangzhou, China, after introducing the matureand advanced technology and service concept into China. It now comprises morethan 100 professional agents with service teams in more than 30 cities in China.  service satisfies customers' diversified and individual needs to thehilt, reduces their maintenance cost, and improves their efficiency.manages the marketing of its technical products to customers. Sharing theadvanced technology value, the validated technology outcomes, and servicesstrengthen our partnership with our customers, your trustworthy service provider of cutting-edge fluid technology!

With the end user and customer feedback, thus establishing a highly-effective techological design and development system for products and services.
